Bathrooms

Navlin Close-Coupled Pan, Cistern & Seat


Product Details

  • Rimless toilet pan offers improved hygiene levels by reducing the build-up of bacteria and making cleaning easier
  • Standard and raised-height pan options available
  • Pan can support up to 60st (400kg) as per BS EN 997 requirements, to cater a wide variety of users
  • Rounded edges and corners reduce the risk of injury in the event of a trip or fall
  • 3/6 litre flush options increase performance and water efficiency
  • Available with a raised push-button or lever flush, both of which ensure the WC can be easily operated by hand, closed fist or elbow
  • Lever flush can be installed left or right-handed
  • Bottom inlet water connection simplifies pipework
  • Cistern is fitted with a top-fill inlet valve that has an all-round air gap which fully complies with current UK Water Regulations
  • Overflow pipe is 300mm above pan rim, fully complying with current UK Water Regulations
  • Horizontal outlet waste connection for easy installation and maintenance
  • Includes easy-to-secure, two-point, side-entry floor fixings which reduce the build-up of dust and bacteria, are easy to clean, and are supplied with white cosmetic caps to prevent rusting
  • Supplied with fixing kit as standard
  • BS EN 997 approved toilet pan for guaranteed flush performance
  • Two contemporary seat options, one made from Carbamide plastic for extra strength and durability, or a PP option made from Polypropylene for a stylish and cost-effective solution; both feature soft-close hinges, which are slower, quieter and safer for users and support up to 23.5st (150kg)
  • Pan, seat and cistern (inc. flush mechanism) supplied separately
  • Components individually packaged in recyclable materials to prevent damage during transit
Navlin Close Coupled WC with push button flush
Navlin Close Coupled WC with push button flush
Navlin Close Coupled WC with left handle flush
Navlin Close Coupled WC with push button flush consilio bidet
Navlin Close Coupled WC with push button flush
Navlin Close Coupled WC with push button flush
Navlin Close Coupled WC with left handle flush
Navlin Close Coupled WC with push button flush consilio bidet

Product Description

The Navlin close-coupled WC is designed to feel at home in any 21st century bathroom, with a minimalist, modern aesthetic, and fully compliant cistern. Featuring a clever rimless toilet pan which improves hygiene levels by reducing the number of hard-to-reach areas where germs can thrive, Navlin WCs are available with complimentary seats and flush options to expertly cater to a variety of needs.

AKW Navlin and Navlin Doc M sanitaryware ranges have been designed with compatibility in mind, allowing you to create a contemporary bathroom that expertly caters to a variety of needs.

Product Variations

Navlin Standard-Height Close-Coupled Toilet Pan
23571
Navlin Raised-Height Close-Coupled Toilet Pan
23570

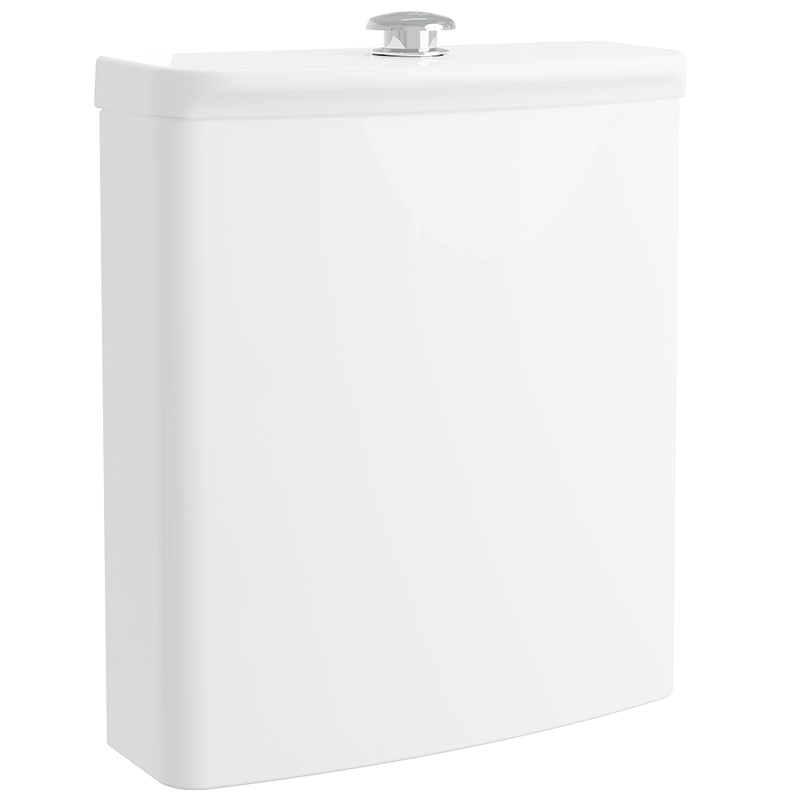

Navlin Cistern and Raised Push Button Flush
23574
Navlin Doc M Cistern with Lever Flush & Screw-Down Lid
23594
Carbamide Plastic Seat Cover with Soft-Close Hinges
23588
PP Plastic Seat Cover with Soft-Close Hinges
23589

Specification Sheets

Navlin Brochure

Specification Sheet
