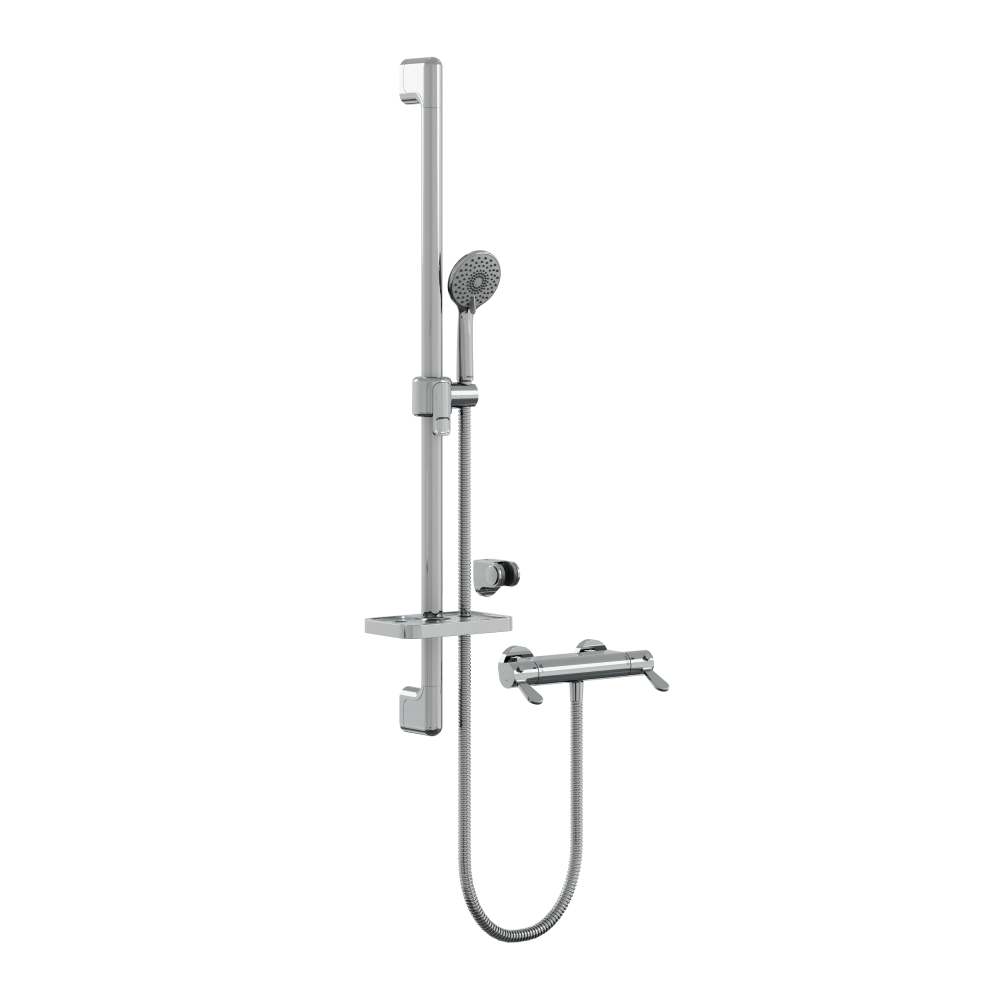

AKW Arka Cool Touch TMV2 Mixer Shower

• Brass mixer valve with a durable and contemporary polished chrome finish
• Cool-touch technology ensures the valve is cool-to-touch when operating, making it incredibly safe for use by adults and children with care needs
• Thermostatic protection which prevents scalding and offers reassurance
• TMV2 approval ensures reliable and safe performance ideal for installation in domestic environments
• Maximum pre-set temperature of 38°C which can be manually overridden using button on valve and increased to 41°C if needed
• Rounded, easy-to-use paddle levers are designed for people of all abilities
• Two levers independently control temperature and flow
• Clearly marked icons on valve indicate temperature and flow settings
• Integral double-check valves ensure the elimination of backflow
• Central bottom outlet for connection to standard shower hoses
• Can be installed with concealed or exposed pipework; supplied as concealed fixing as standard, Surface-Mounted Pipework Fixings available separately
• Optional water-saving model available with a fitted flow limiter for a maximum flow rate of 6lpm

Technical Specification

• Valve Type: Thermostatic bar shower mixer with independent flow and temperature controls
• Materials: Brass valve, mounting brackets and zinc alloy levers with chrome-plated finish
• Minimum Dynamic Pressure: 0.5 Bar
• Maximum Dynamic Pressure: 5 Bar
• Maximum Static Pressure: 10 Bar
• Dimensions for Fitting: 150mm, +/- 15mm
• Concealed & Exposed Water Entry: Back
• Inlet Connectors: ¾” – ½” BSP
• Maximum Pre-Set Temperature: 38°C
• Maximum Pressure Difference (Between Hot & Cold Water Supply): 1 Bar
• Maximum Flow (@ 3 Bar): 19.5lpm

Warranty & Approvals
+ 5-year warranty on Arka Mixer Valves
+ TMV2
+ WRAS

Shower Accessory Kit & Handset Options:

+ AKW Care Shower Accessory Kit:
– 1m 150kg (23.5st) weight-loading riser rail
– Lever-operated sliding handset holder
– 3-spray-mode handset
– 2m anti-kink hose
– Shelf with non-handed integral hose retainers
– Additional wall-mounted handset holder
– Available to order in a kit with the Arka Cool Touch Mixer Valve

Care shower kit is available in various colours and finishes, with dark blue and mid-grey rails providing colour contrast for those with dementia or visual
impairment.

+ AKW Standard Shower Accessory Kit:
– 1m chrome-finished riser rail (can be trimmed if needed)
– Button-operated sliding handset holder
– 3-spray-mode handset
– 2m anti-kink hose
– Soap dish
– Integral hose retaining ring
– Available to order separately

+ AKW Rain Head Shower Kit with Handset:
– Chrome riser rail with lever handle diverter
– Fixed rainfall shower head
– 3-spray mode handset
– Button-operated sliding handset holder
– 600mm hose (for connection to mixer valve)
– 1.5m hose (for connection from diverter to handset)
– Available to order separately

+ AKW On/Off Shower Head:
– 3-spray-mode handset
– On/Off push button pauses/resumes water flow when required
– Helps carers stay dryer for longer during care-assisted showering
– Can be used to support water-saving initiatives
– Available to order separately

+ AKW Easy-Clean Shower Head:
– Single-mode shower handset
– Simple 3-component construction which is easy to clean
– Supplied with 2 white/grey interchangeable, removable faceplates
– Facilitates regular efficient cleaning where hygiene is a top priority
– Available to order separately
